pgAdmin

pgAdmin is an open-source tool designed for managing PostgreSQL databases, offering a comprehensive graphical user interface. It simplifies tasks such as database creation, management, querying, and maintenance, making it accessible for both novice and experienced users.

Since the database for the MiniReal system is based on PostgreSQL, pgAdmin can be used to manage that database.

Deployment

The pgAdmin can be deployed onto the same docker-network with the PostgreSQL container for a smooth integration. The following docker-compose file shows an integrated deployment of the pgAdmin container with the respective database.

docker-compose.yml

version: '3.3'

services:
  postgres:
    container_name: postgres
    image: postgres
    restart: unless-stopped
    environment:
      POSTGRES_USER: ${POSTGRES_USER}
      POSTGRES_PASSWORD: ${POSTGRES_PASSWORD}
      POSTGRES_MULTIPLE_DATABASES: ${POSTGRES_MULTIPLE_DATABASES}
    volumes:
      - ./postgre_data:/var/lib/postgresql/data
      - ./init-db.sh:/docker-entrypoint-initdb.d/init-db.sh
    ports:
      - "5432:5432"
    networks:
      - postgres

  pgadmin:
    container_name: pgadmin
    image: dpage/pgadmin4
    environment:
      PGADMIN_DEFAULT_EMAIL: ${PGADMIN_DEFAULT_EMAIL:-pgadmin4@pgadmin.org}
      PGADMIN_DEFAULT_PASSWORD: ${PGADMIN_DEFAULT_PASSWORD:-admin}
      PGADMIN_CONFIG_SERVER_MODE: 'False'
    volumes:
      - pgadmin:/var/lib/pgadmin
    ports:
      - "5050:80"
    networks:
      - postgres
    restart: unless-stopped

networks:
  postgres:
    driver: bridge

volumes:
  pgadmin:

.env

POSTGRES_USER=root
POSTGRES_PASSWORD=example_pwd
POSTGRES_MULTIPLE_DATABASES=auth,sim,minireal

Additionally, the PostgreSQL service also requires a startup bash script be placed with the Docker compose file inorder to initialize the required databases for the MiniReal system. The script is named init-db.sh as shown below.

init-db.sh

#!/bin/bash
set -e

# Create multiple databases
for db in ${POSTGRES_MULTIPLE_DATABASES//,/ }; do
    psql -v ON_ERROR_STOP=1 --username "$POSTGRES_USER" --dbname "$POSTGRES_DB" <<-EOSQL
        CREATE DATABASE $db;
EOSQL
done

Web UI

The web UI for the pgadmin can be access by going to the address:

http://localhost:5050
http://[host_ip_address]:5050

Upon initial access, the pgAdmin site will request for a global UI password to secure it. This password is set only once on the initial access and must not be forgotten.

After the setting of the pgAdmin UI password, the following actions can be taken to integrate the PostgreSQL database with it.

Adding a database server

The following steps can be taken to navigate to the UI that will help to register the PostgreSQL database container.

Right-click on the Servers option found on the left panel of the screen.
Hover over the Register option found in the context window that pops up.
Then click on Server... option from the new options that show up.

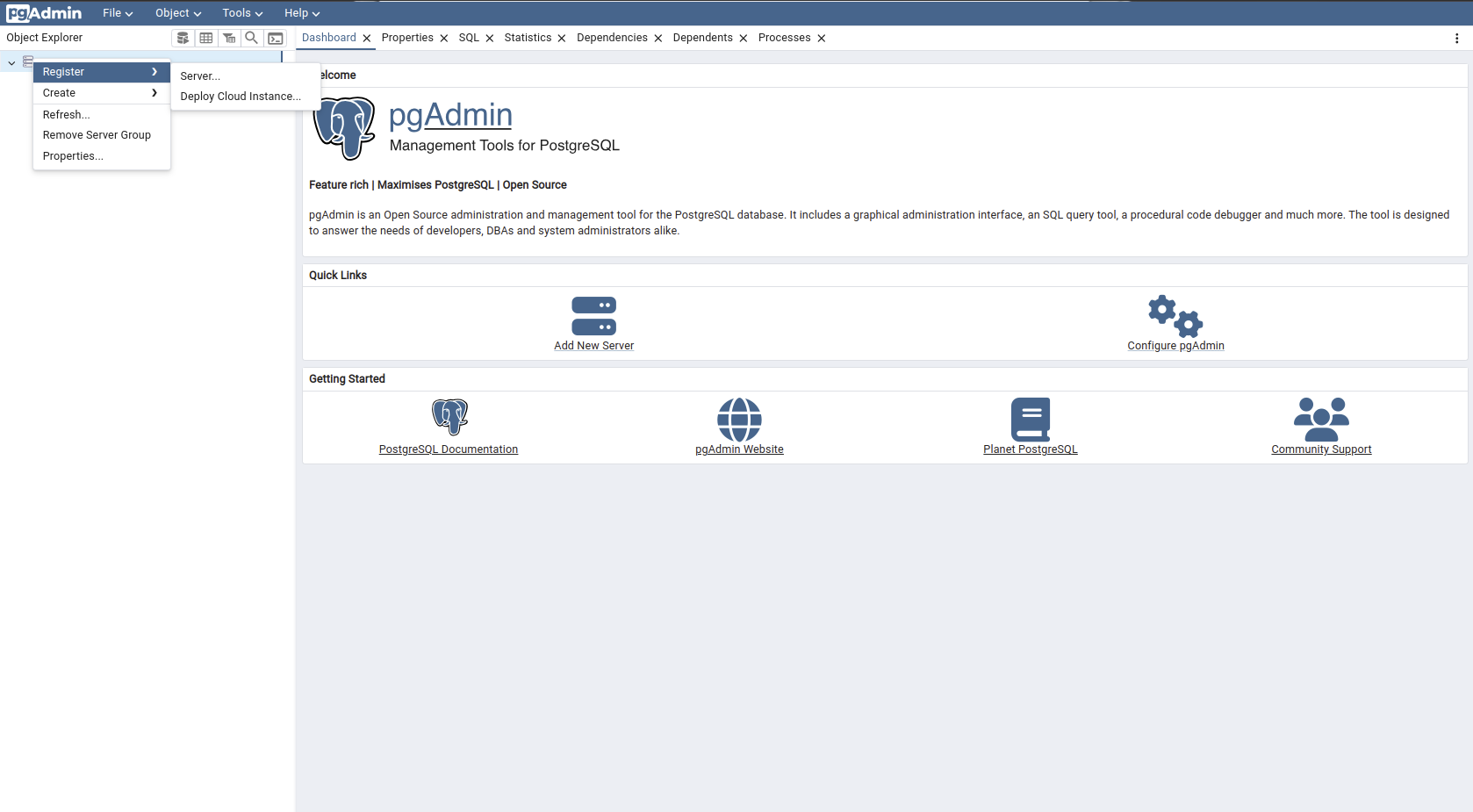

Figure: Navigating to database server integrating page

Thereafter, a new small window named Register - Server will pop up. Here the name of choice for the db integration can be entered in the Name field. Then navigate to the Connection tab to enter the details of the PostgreSQL database.

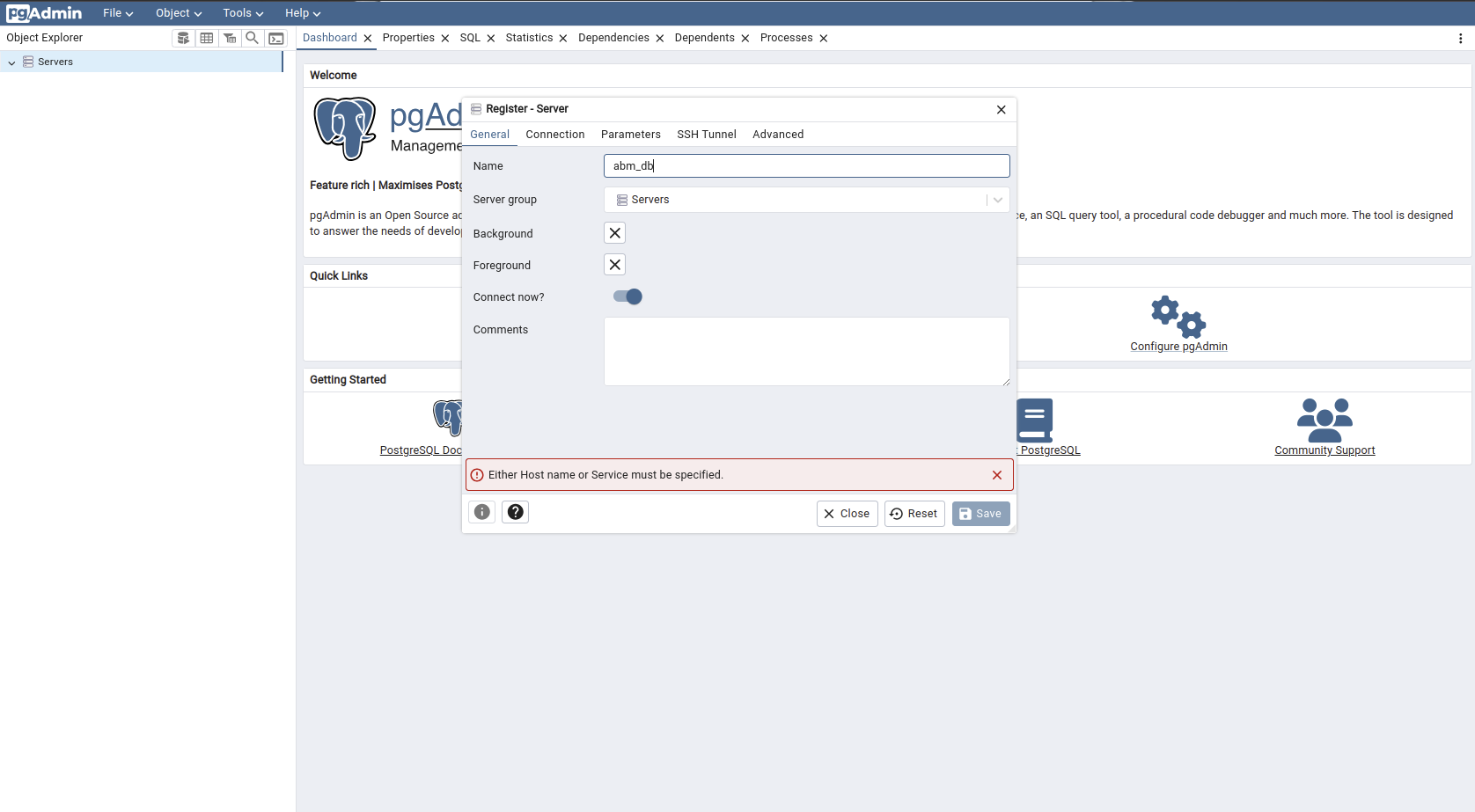

Figure: Setting db connection name

On the Connection tab, the following information should be set:

Set Host name/address as postgres.
- This is the service name in the docker-compose file. The usage of such service name for address is possible since both the pgAdmin and PostgreSQL containers are on the same docker-network.
Set Port to 5432.
Set Maintenance database as minireal.
- This is the database that WSim will use to store all the system data. The creation of this database is handled by the init-db.sh script.
Set Username as root.
Enter the password set for the PostgreSQL database to the Password field.
Enable the Save password? toggle button.
Finally click on the Save button to complete the integration.

Note

The above information is set base on the docker-compose file shared in the previous section. Any changes made to the docker configuration file should be reflected in the form specified above as well.

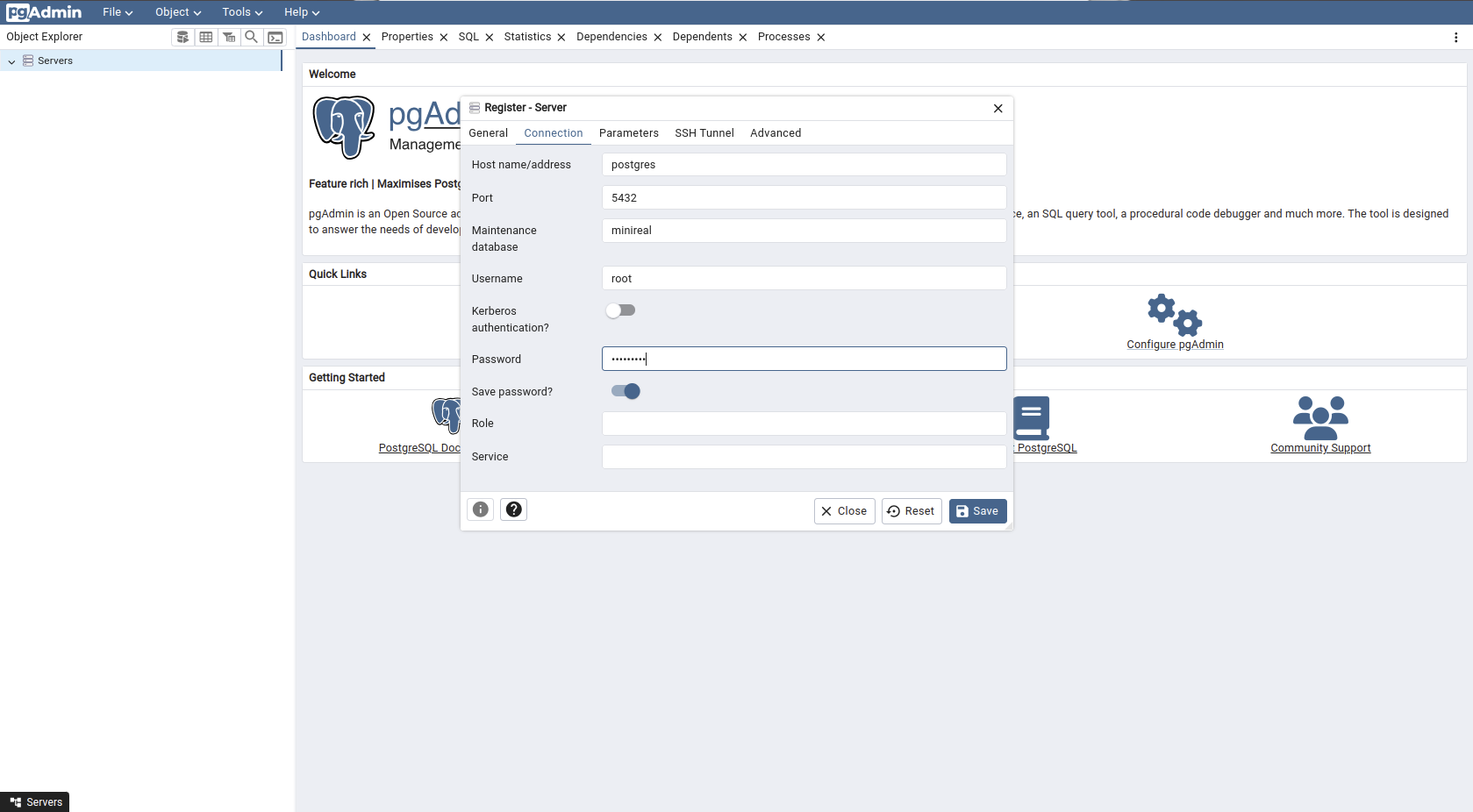

Figure: Filling out the connection details of the Postgre database

Exploring the database and tables

The tables for the WSim system can be obtained by navigating the pgAdmin UI as follows. connection name -> Databases -> minireal -> Schemas -> public -> Tables

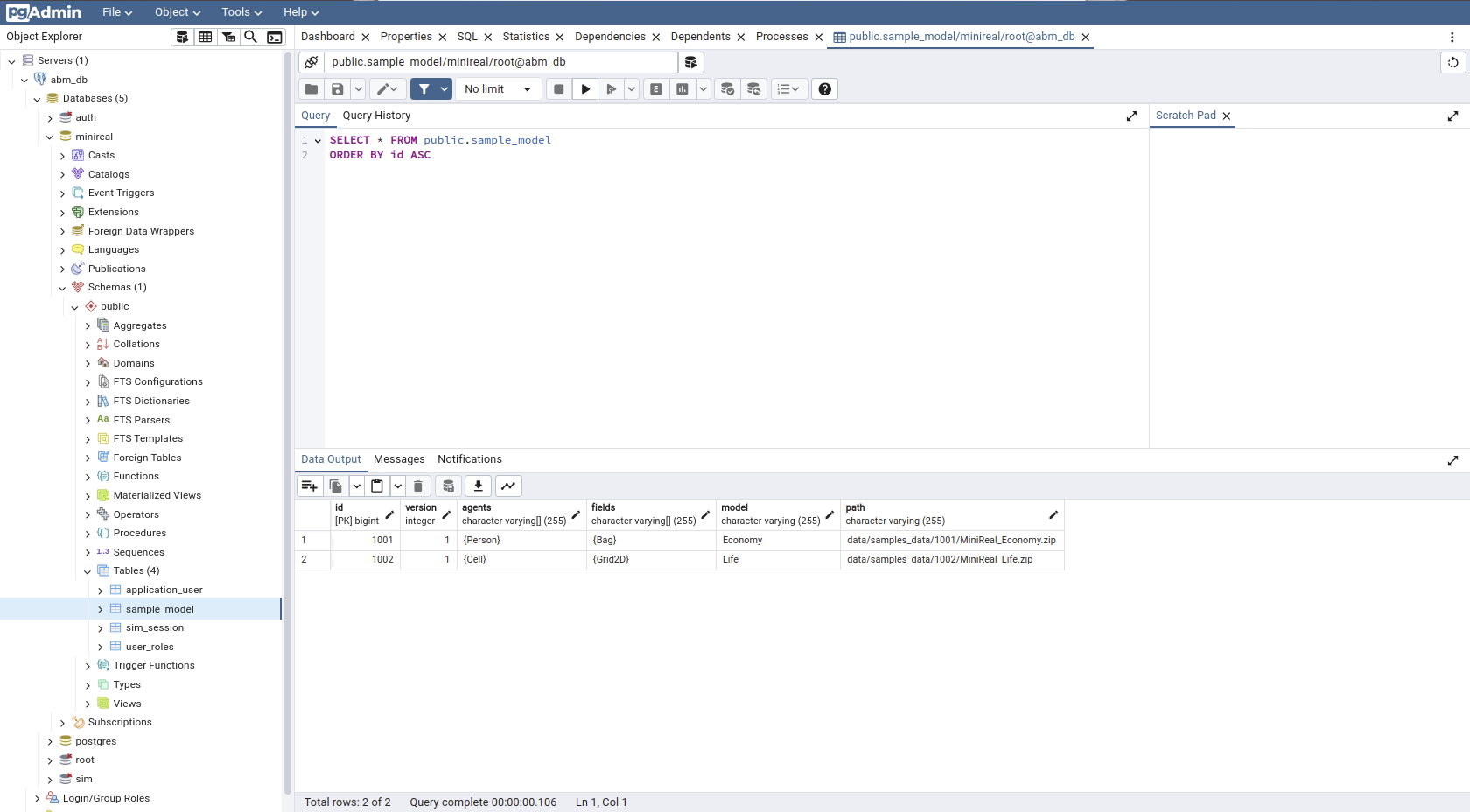

Figure: Navigating the pgAdmin page to get relevant database tables

The data in each table can be access through the following steps.

Right click on the table -> View/Edit Data -> All Rows

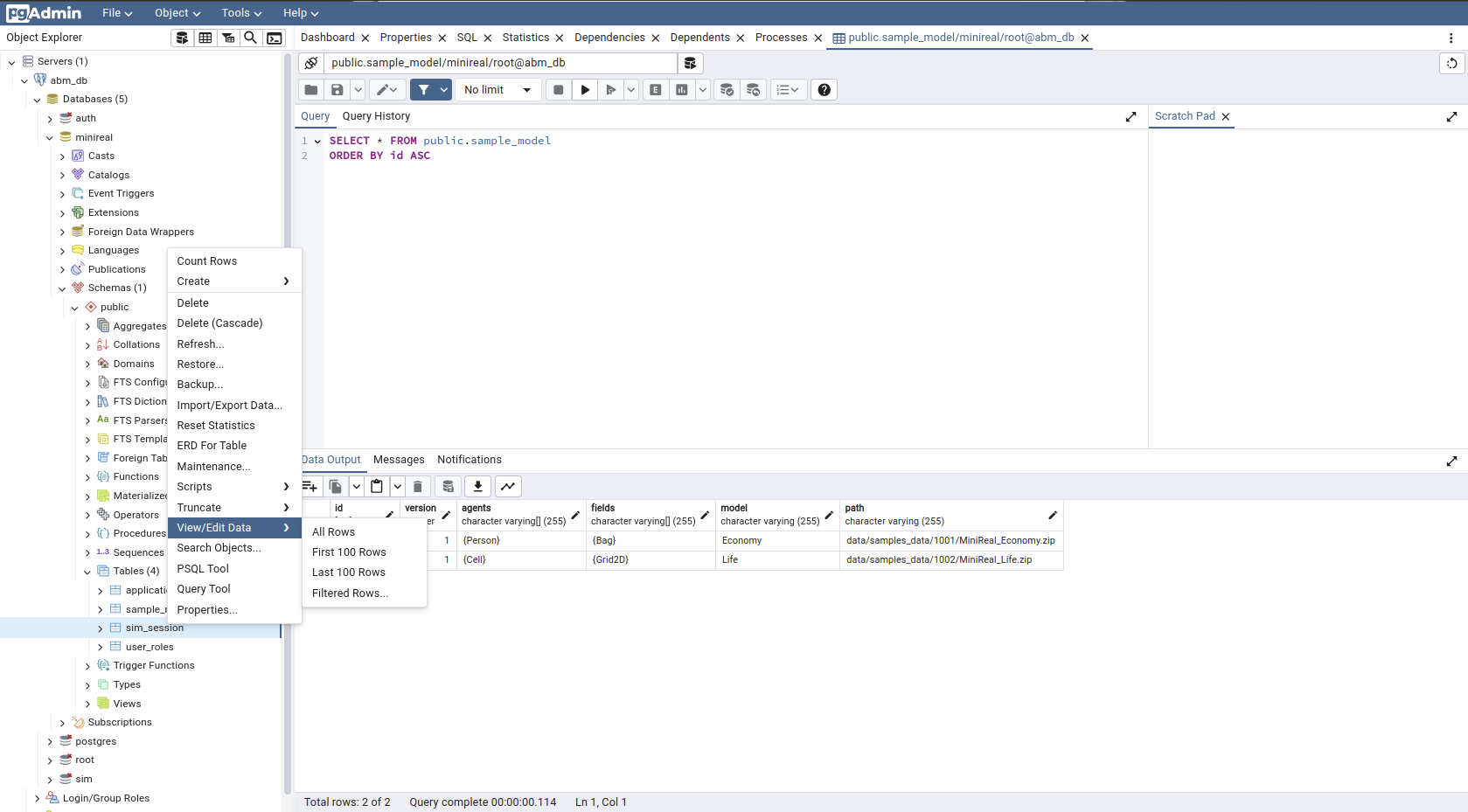

Figure: Viewing database table data
