Kafka Control Center

Kafka Control Center is a web-based tool designed to manage and monitor Apache Kafka clusters or brokers. It provides an intuitive user interface for cluster management, message inspection, and Schema Registry integration.

In the case of MiniReal, the Control Center can be used to view the health of the Kafka broker and monitor the data being passed through the topics.

Deployment

The following docker-compose file includes the Zookeeper and Apache Kafka Broker containers in addition to the Apache Kafka Control Center, since the initial two services are prerequisite for the Control Center.

docker-compose
version: '3.3'
services:
  zookeeper:
    image: confluentinc/cp-zookeeper:7.3.1
    hostname: zookeeper
    container_name: zookeeper
    ports:
      - "2181:2181"
    environment:
      ZOOKEEPER_CLIENT_PORT: 2181
      ZOOKEEPER_TICK_TIME: 2000

  broker:
    image: confluentinc/cp-server:7.3.1
    hostname: broker
    container_name: broker
    depends_on:
      - zookeeper
    ports:
      - "9092:9092"
      - "9101:9101"
    environment:
      KAFKA_BROKER_ID: 1
      KAFKA_ZOOKEEPER_CONNECT: 'zookeeper:2181'
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: PLAINTEXT:PLAINTEXT,PLAINTEXT_HOST:PLAINTEXT
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://broker:29092,PLAINTEXT_HOST://${KAFKA_ADDRESS}:9092
      KAFKA_METRIC_REPORTERS: io.confluent.metrics.reporter.ConfluentMetricsReporter
      KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR: 1
      KAFKA_GROUP_INITIAL_REBALANCE_DELAY_MS: 0
      KAFKA_CONFLUENT_LICENSE_TOPIC_REPLICATION_FACTOR: 1
      KAFKA_CONFLUENT_BALANCER_TOPIC_REPLICATION_FACTOR: 1
      KAFKA_TRANSACTION_STATE_LOG_MIN_ISR: 1
      KAFKA_TRANSACTION_STATE_LOG_REPLICATION_FACTOR: 1
      KAFKA_JMX_PORT: 9101
      KAFKA_JMX_HOSTNAME: localhost
      KAFKA_CONFLUENT_SCHEMA_REGISTRY_URL: http://schema-registry:8081
      CONFLUENT_METRICS_REPORTER_BOOTSTRAP_SERVERS: broker:29092
      CONFLUENT_METRICS_REPORTER_TOPIC_REPLICAS: 1
      CONFLUENT_METRICS_ENABLE: 'true'
      CONFLUENT_SUPPORT_CUSTOMER_ID: 'anonymous'


  control-center:
    image: confluentinc/cp-enterprise-control-center:7.3.1
    hostname: control-center
    container_name: control-center
    depends_on:
      - broker
    ports:
      - "9021:9021"
    environment:
      CONTROL_CENTER_BOOTSTRAP_SERVERS: 'broker:29092'
      CONTROL_CENTER_REPLICATION_FACTOR: 1
      CONTROL_CENTER_INTERNAL_TOPICS_PARTITIONS: 1
      CONTROL_CENTER_MONITORING_INTERCEPTOR_TOPIC_PARTITIONS: 1
      CONFLUENT_METRICS_TOPIC_REPLICATION: 1
      PORT: 9021
The following environment variables file needs to be placed in the same directory as the docker-compose file.

.env
KAFKA_ADDRESS=<IP_address_of_server>

Web UI

The web UI for the Kafka Control Center can be access by going to the address:

  • http://localhost:9021
  • http://[host_ip_address]:9021

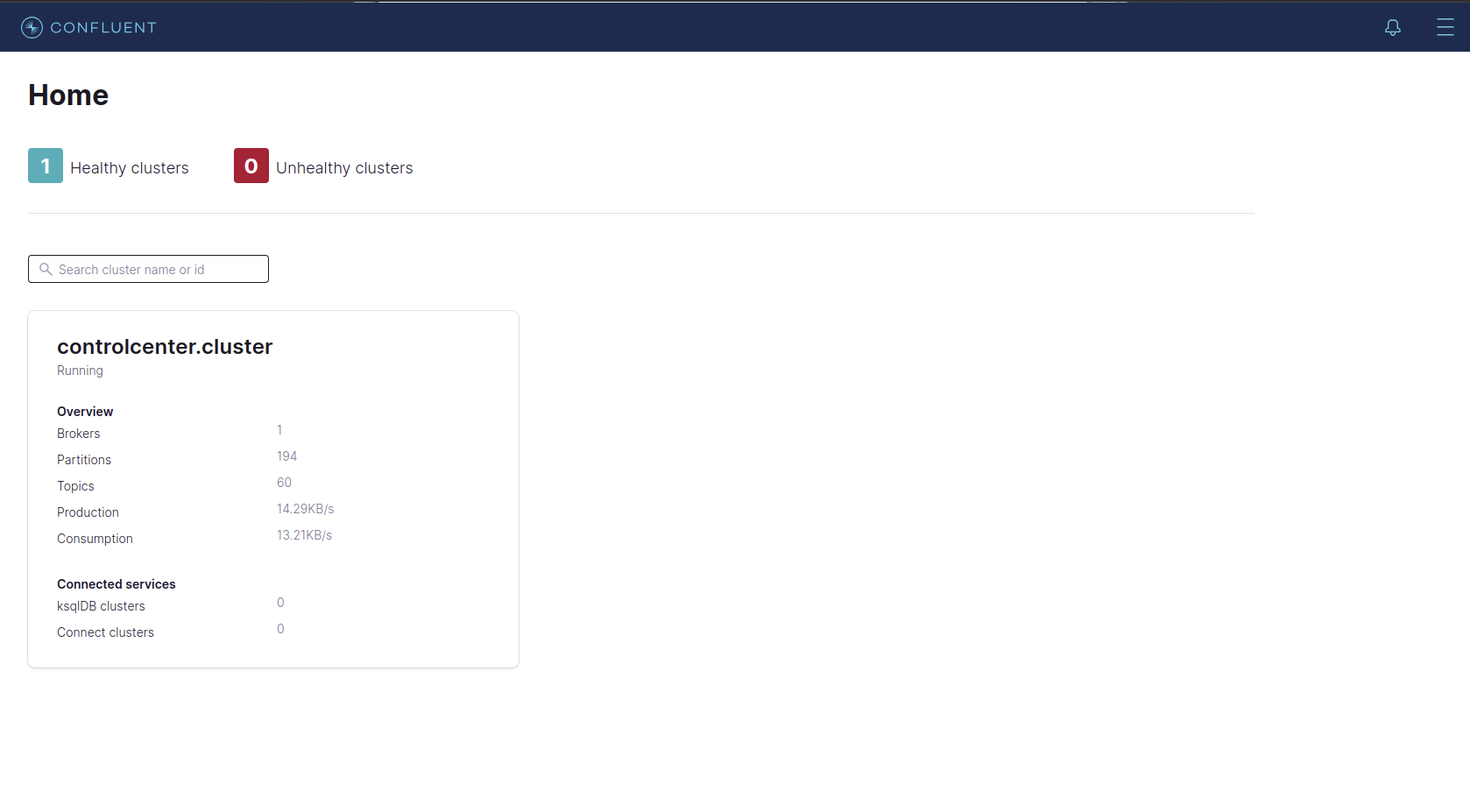

Apache Kafka Control Center Welcome Screen

Figure: Apache Kafka Control Center Welcome Screen

Monitoring Kafka Topics

The MiniReal system hugely relies on the Topics of the Kafka broker. Thus, the control center is mainly used to observe and monitor the state of the Topics. The list of Topics currently being managed by the broker can be reached by the following steps.

  • Click on the cluster found in the Home page.
  • Click on Topics option on the left hand-side drawer, and this will display all the topics.

Note

Topics are continuously created and deleted based on simulation sessions, thus they are temporary. Should the list of Topics increase too much, system admins can delete them from the Control Center.

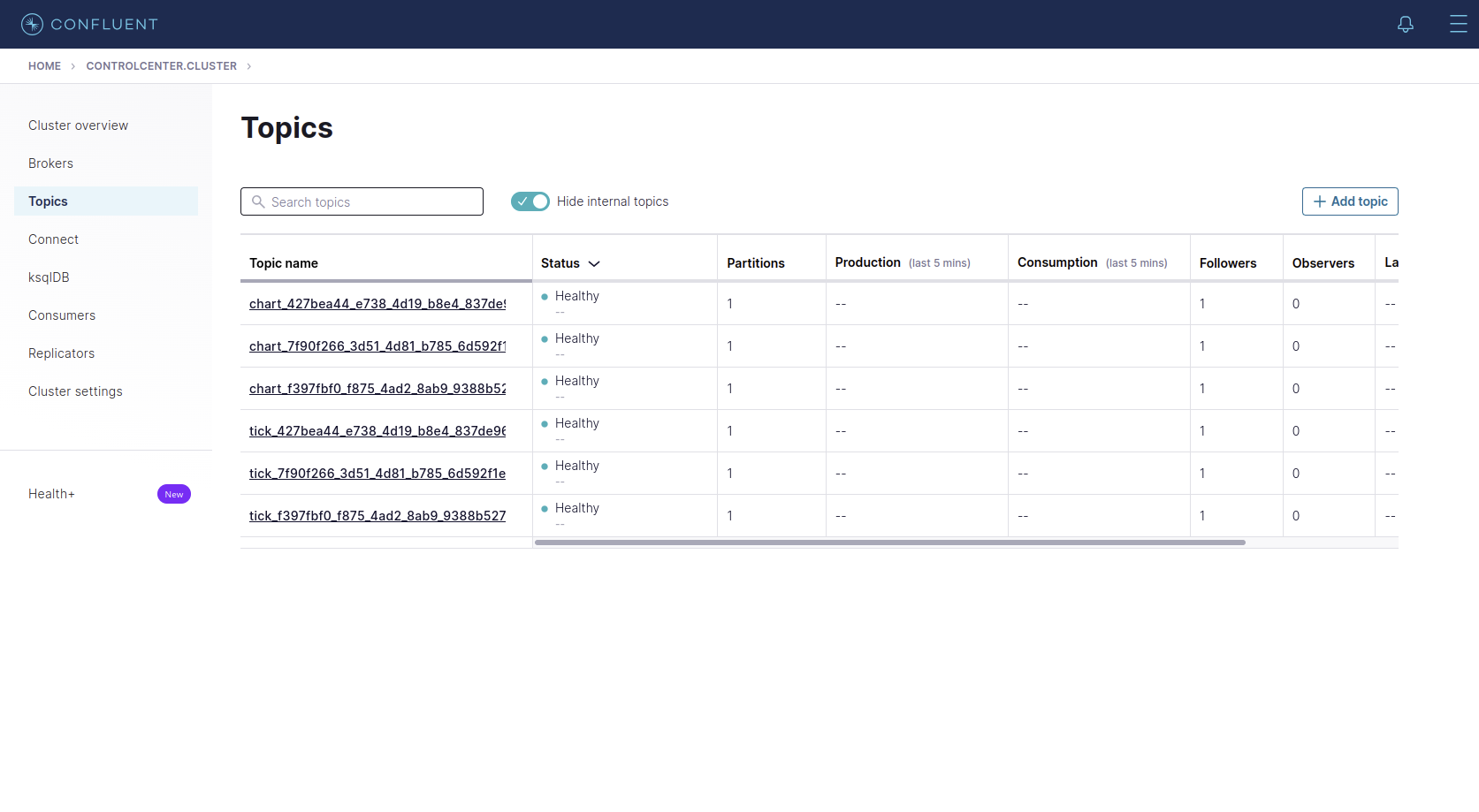

List of Topics on Kafka broker

Figure: List of Topics on Kafka broker

Monitoring Simulation Data

The simulation charting data passes through the Kafka broker inorder to reach the MiniReal UI. This data can be monitored by clicking on the correct Topic name on the Control Center and navigating to the Messages tab.

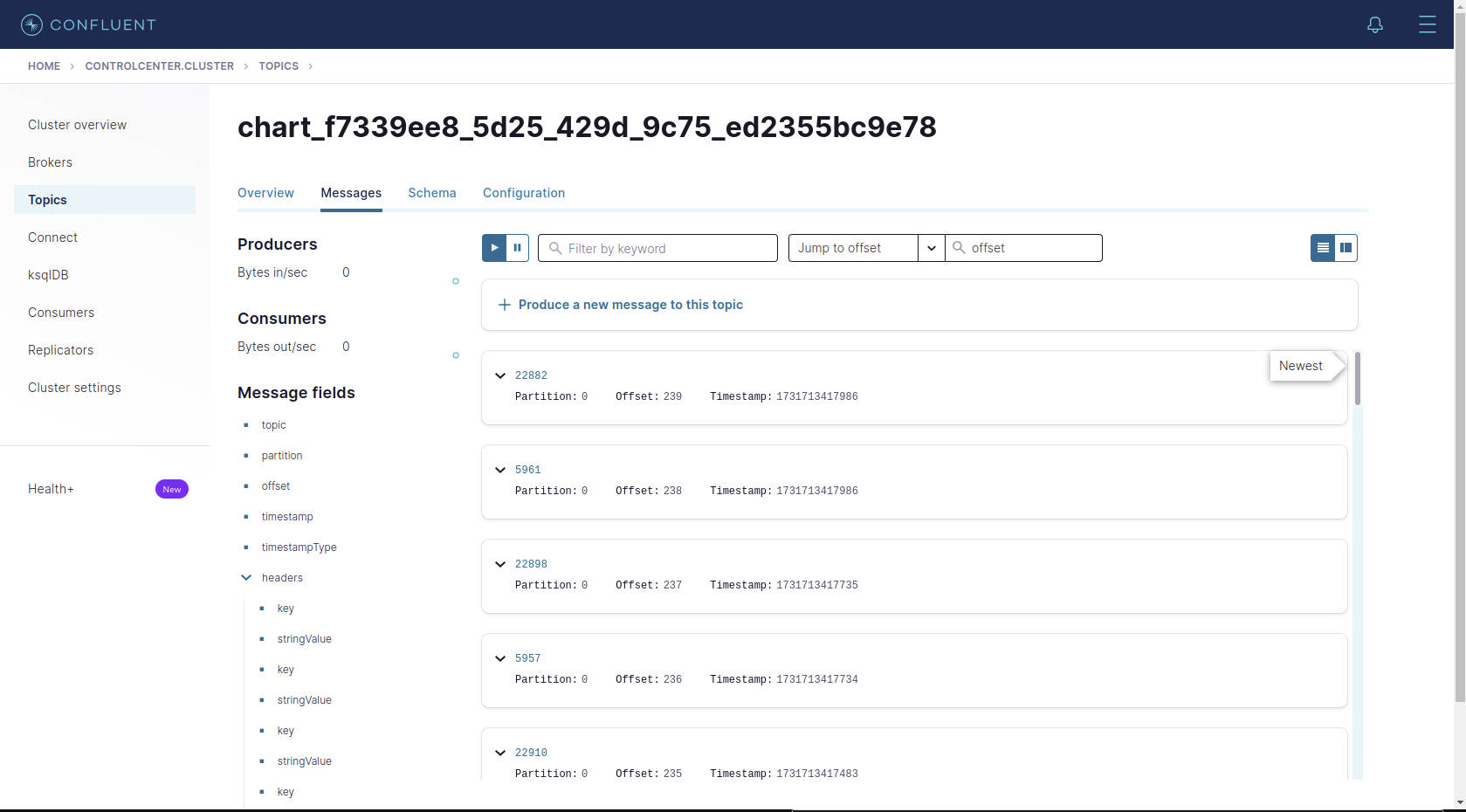

Simulation data being communicated through Kafka Topic

Figure: Simulation data being communicated through Kafka Topic
