Model and Agent Annotation usage

The @SimModel and @SimAgent annotations are used to mark the simulation Model and Agent classes respectively. This information is used by the MiniReal Annotation Processor library in the generation of the Simulation Launcher class.

These annotations should be placed on top of the Model and Agent classes. The details of their specification is explained in the Background page.

Usage of Model and Agent Annotations

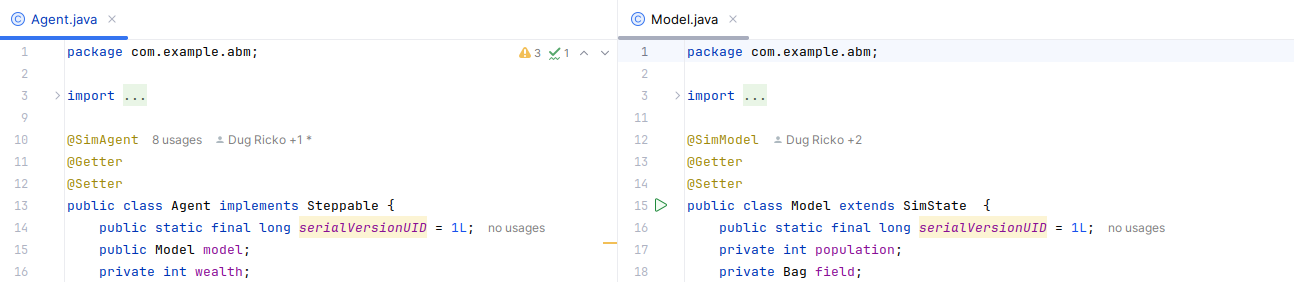

Figure: Usage of SimModel and SimAgent Annotations

Model.java
import org.simreal.annotation.*;
import sim.engine.SimState;

@SimModel
public class Model extends SimState  {

    // rest of code ...
}
Agent.java
import org.simreal.annotation.SimAgent;
import sim.engine.Steppable;
import sim.engine.SimState;

@SimAgent
public class Agent implements Steppable {

    // rest of code ...

}
